Pyroelectric IR sensor

Compares to the five senses of human, infrared sensor is the role of “eye”.
Material called ferroelectrics absorbs thermal energy that changes spontaneous polarization generating a surface electrical charge.
The charge is proportional to polarization change.
This phenomenon is called the pyroelectric effect. Infrared sensor using fine ceramic materials can detects even the slight infrared energy charge, such as that emitted from a human body. Application is various and our sensor is used all over the world.
It brings safety and amenity life for you.

▶Pyroelectric Infrared Sensor

Part number AppearanceData SheetLightingDoorbell IP CameraHVACHome appliances SecurityGas/Flame DetectionObjectNumber of element FOV
(X-axis)		FOV
(Y-axis)		ShapeOutput methodFeature TM

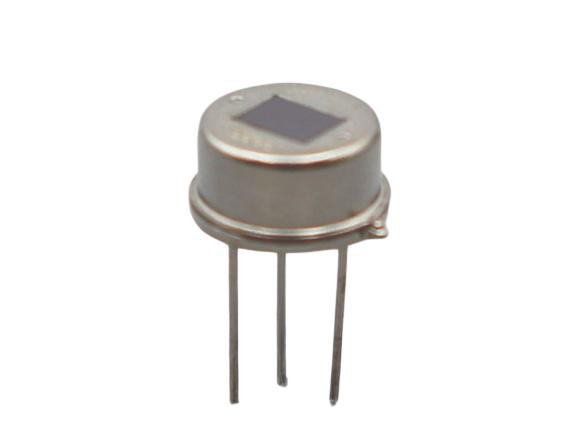

RE200Gpdf〇〇〇Human body,
other		2138°125°TO-5 detectoranalog* General Purpose
* High PSRR
RE200GEpdf〇〇〇Human body,
other		2138°125°TO-5 detectoranalog* General Purpose
* Low voltage operation

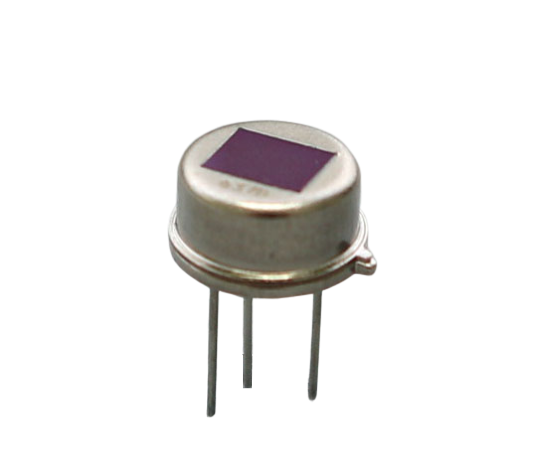

RE200GE-WWpdf〇〇〇〇〇Human body,
other		2145°136°TO-5 detectoranalog* Wide-angle detection dual sensor
* Low voltage operation

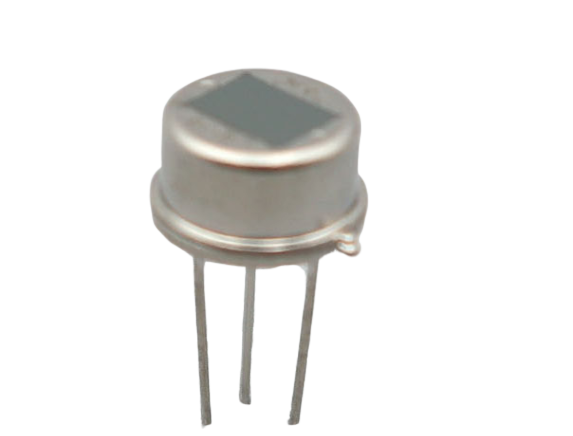

SCG321-611pdf〇Human body,
other		2134°120°TO-5 detectoranalog* High EMC
SFG223-611pdf〇Human body,
other		2145°136°TO-5 detectoranalog* High EMC
SFG323-611pdf〇Human body,
other		2134°120°TO-5 detectoranalog* High EMC
* High white light immunity

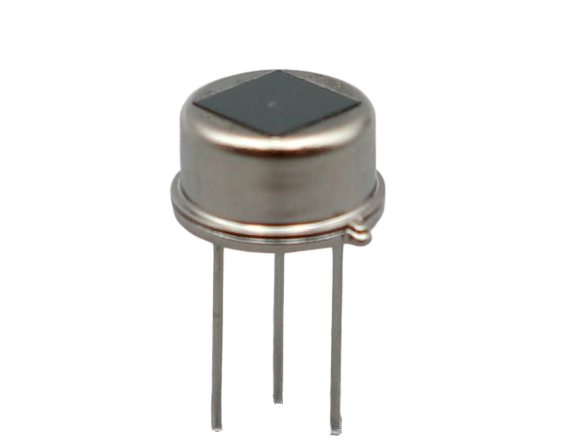

SFG469-711pdf〇Human body,
other		2132°146°TO-5 detectoranalog* Omni-directional dual sensor
(both ceiling mount and wall mount)
* High EMC		69-Pyro
SEG446-711pdf〇〇〇〇〇Human body,
other		4132°146°TO-5 detectoranalog* Omni-directional 4-element and 1-channel sensor
(for ceiling mount)
SDG413-611pdf〇〇〇〇〇Human body, other4132°132°TO-5 detectoranalog* General Purpose　4-element and 2-channel sensor
* Pet immunity sensor

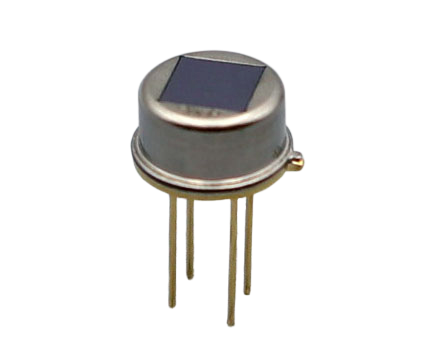

SQG413-612pdf〇〇〇〇〇〇Human body,
other		4145°145°TO-5 detectoranalog* 4-element and 2-channel sensor
* Pet immunity sensor

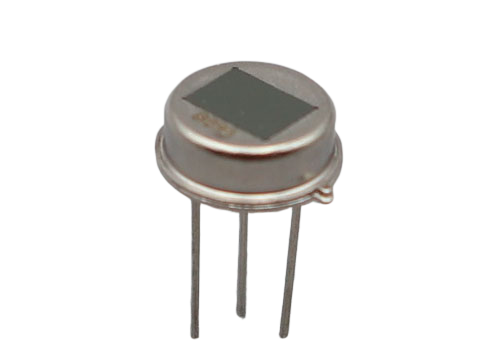

SLG323-611pdf〇〇〇〇〇Human body,
other		2150°139°TO-5 detectoranalog* Low profile sensor
* Low voltage operation

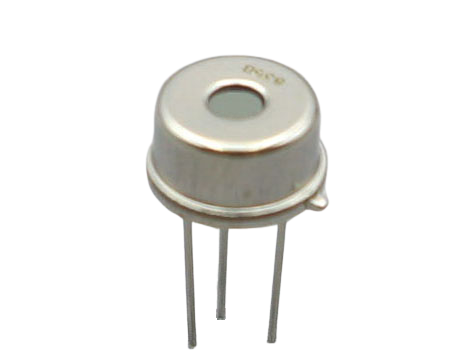

SAAC10-11-Gpdf〇Gas, flame1115°115°TO-5 detectoranalog* Single element sensor
* Low voltage operation
SW-ULP69-20pdf〇〇〇〇Human body,
other		2132°146°TO-5 detectoranalog* Omni-directional dual sensor
(both ceiling mount and wall mount)
* Amp build-in type 		69-Pyro
D1-323-AApdf〇〇〇〇〇〇Human body,
other		2148°136°TO-5 detectorDigital
ON/OFF		* Wide-angle detection dual sensor
* ASIC build-in type 		D-Pyro
D1-446-AApdf〇〇〇〇〇〇Human body,
other		4146°156°TO-5 detectorDigital
ON/OFF		* Omni-directional 4-element and 1-channel sensor (for ceiling mount)
* ASIC build-in type 		D-Pyro
D1-469-AApdf〇〇〇〇〇〇Human body,
other		2146°156°TO-5 detectorDigital
ON/OFF		* Omni-directional dual sensor (both ceiling mount and wall mount)
* ASIC build-in type 		D-Pyro
69-Pyro
D3-323-AApdf〇〇〇〇〇〇Human body,
other		2148°136°TO-5 detectorDigital
UART・
ON/OFF		*Wide-angle detection dual sensor
*ASIC build-in type		D-Pyro
D3-446-AApdf〇〇〇〇〇〇Human body,
other		4146°156°TO-5 detectorDigital
UART・
ON/OFF		*Omni-directional 4-element and 1-channel sensor
(for ceiling mount)
*ASIC build-in type		D-Pyro
D3-469-AApdf〇〇〇〇〇〇Human body,
other		2146°156°TO-5 detectorDigital
UART・
ON/OFF		*Omni-directional dual sensor
(both ceiling mount and wall mount)
*ASIC build-in type		D-Pyro
69-Pyro
D4-323-AApdf〇〇〇〇〇〇Human body,
other		2148°136°TO-5 detectorDigital
I2C		*Wide-angle detection dual sensor
*ASIC build-in type		D-Pyro
D4-446-AApdf〇〇〇〇〇〇Human body,
other		4146°156°TO-5 detectorDigital
I2C		*Omni-directional 4-element and 1-channel sensor
(for ceiling mount)
*ASIC build-in type		D-Pyro
D4-469-AApdf〇〇〇〇〇〇Human body,
other		2146°156°TO-5 detectorDigital
I2C		*Omni-directional dual sensor
(both ceiling mount and wall mount)
*ASIC build-in type		D-Pyro
69-Pyro
D4Q-413-AApdf〇〇〇〇〇〇Human body,
other		4146°146°TO-5 detectorDigital
I2C		* 4-element and 2-channel sensor
* Pet immunity sensor
* ASIC build-in type 		D-Pyro

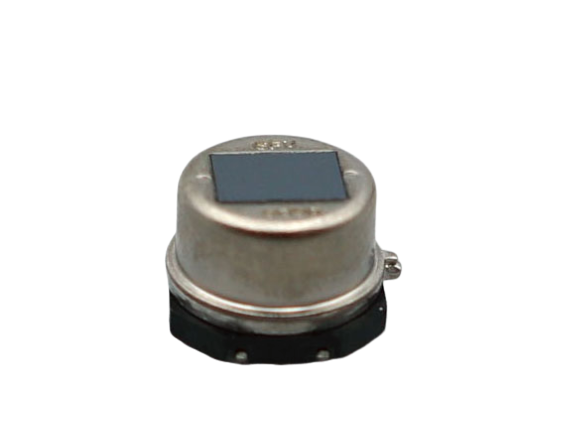

SFM323-511pdf〇Human body,
other		2134°120°SMDanalog* Surface mount type
* High EMC
* High white light immunity		S-Pyro

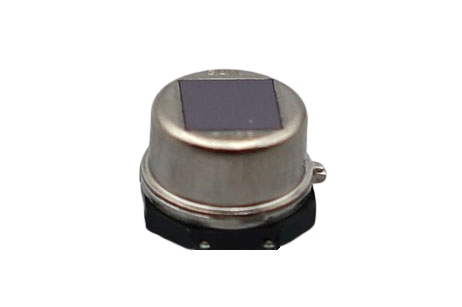

SFM469-511pdf〇Human body,
other		2132°146°SMDanalog* Omni-directional dual sensor
(both ceiling mount and wall mount)
* Surface mount type * High EMC		S-Pyro
69-Pyro

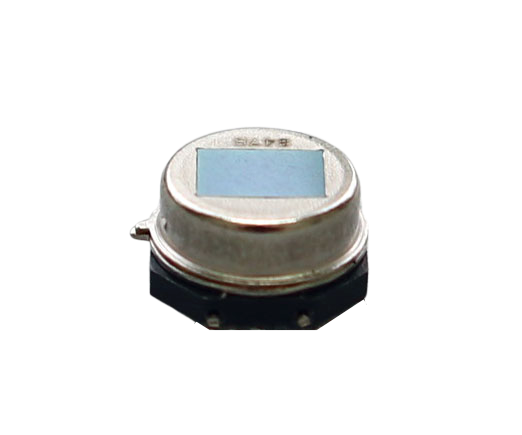

SLM323-511pdf〇〇〇〇〇Human body,
other		2152°142°SMDanalog* Low profile sensor
* Surface mount type
* High EMC		S-Pyro
SLM469-511pdf〇〇〇〇〇Human body,
other		2150°159°SMDanalog* Low profile sensor
* Surface mount type
* Omni-directional dual sensor
(both ceiling mount and wall mount)		S-Pyro
69-Pyro
SUM469-20pdf〇〇〇〇Human body,
other		2132°146°SMDanalog* Omni-directional dual sensor
(both ceiling mount and wall mounting)
* Surface mount type
* Amp build-in type 		S-Pyro
69-Pyro
